TP500 Triple Stacker
The TP500 is a triple stacker parking lift — a hydraulic 4-post, 3-level system that triples parking capacity. It raises and locks two platforms, allowing a third vehicle to park at grade.
Product Gallery
Overview

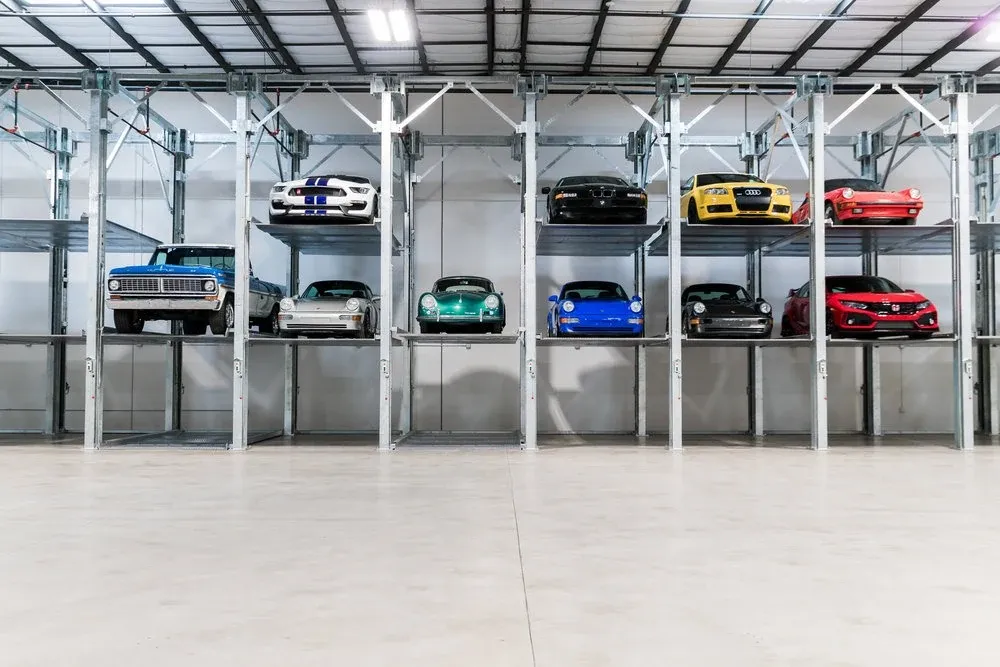

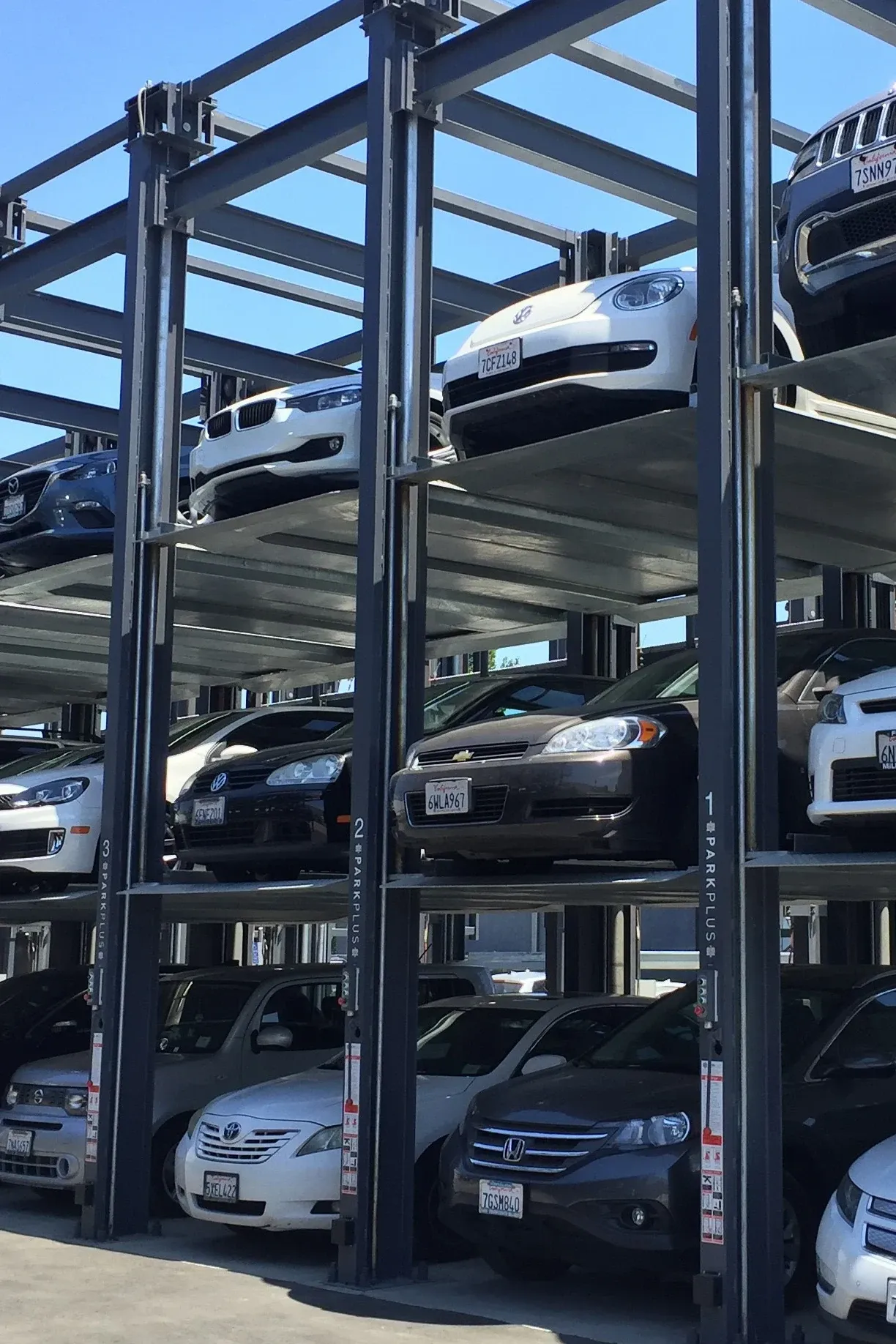

The TP500 is a triple stacker parking lift — a hydraulic 4-post, 3-level system that triples parking capacity. It raises and locks two platforms, allowing a third vehicle to park at grade. The TP500 is a triple stacker parking lift — a hydraulic 4-post, 3-level vehicle lift designed to triple parking density. Two independent platforms raise and lock vehicles above grade, allowing a third vehicle to park at ground level, turning one parking space into three. Available as single units or in arrays with shared common legs for maximum density. Units can be arranged on either side of a drive aisle in single or tandem configurations. A queuing space for at least 2 vehicles is required for shuffling operations. The TP500 accommodates standard passenger vehicles and SUVs, with custom solutions available for vans, RVs, and boats. Designed for both indoor and outdoor installation in attended/valet configurations. Push-button control. Smooth, reliable operation with independent platform movement. Safety hook locking with secondary anti-fall protection holds full vehicle weight on every platform. Heavy-duty 4-post frame supports three levels of vehicles. Galvanized, commercial-grade construction. Single units or tandem arrays. Custom solutions for vans, RVs, and boats. Indoor and outdoor. Every TP500 triple stacker parking lift is manufactured in-house with galvanized, commercial-grade materials and premium hydraulic cylinders. Custom width configurations available. Load per Platform | 6,000 lbs Weight of Unit | ± 9,000 lbs Platform Length | 15'-0" Length incl. Overhang | 16'-6" to 18'-0" Width of Unit | 8'-6" to 8'-10" Height of Unit | 21'-11" to 25'-7"
