SP100 Suspended Platform

Overview

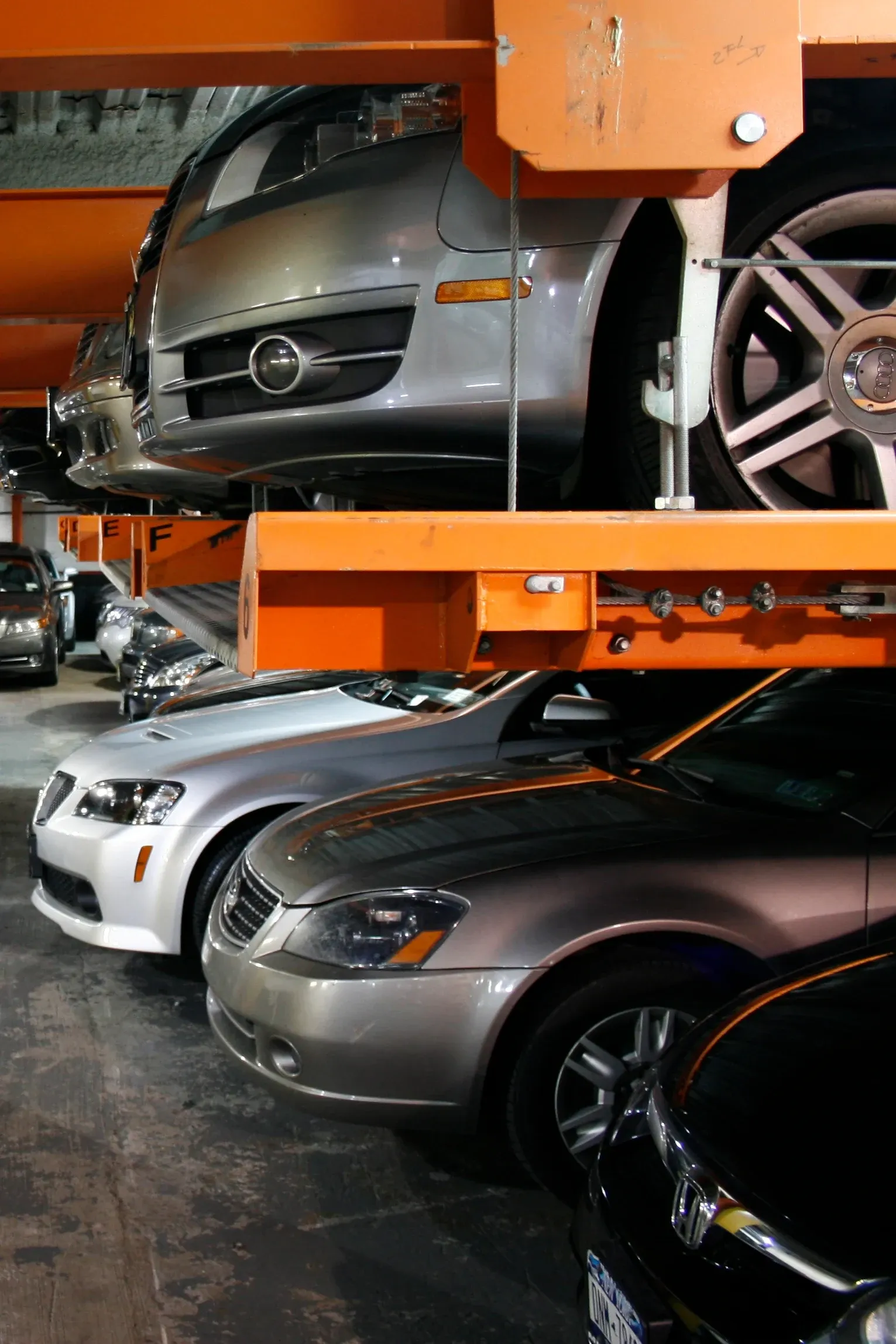

The SP100 is a suspended platform parking lift that stores cars vertically on overhead platforms, providing a completely column-free area below for additional parking spaces. This 2-level electric vehicle lift is available in 1, 2, and 3-wide modules. The SP100 is a suspended platform parking lift that stores cars vertically on platforms suspended from structural framework or building integration. Unlike traditional post-mounted stackers, the SP100 provides a completely column-free area below, allowing additional vehicles to park underneath. Available in 1-wide, 2-wide, and 3-wide modules, the SP100 can be configured in single or multiple arrays. Units can be arranged on either side of a drive aisle or suspended directly over a drive aisle. Platforms can be ceiling-hung or integrated into building structure. All dimensions are fully customizable to project requirements. The SP100 is designed for both indoor and outdoor installation, accommodating standard passenger vehicles and SUVs with a 6,000 lb load capacity per platform. Push-button control with 3HP–5HP lift motor. Smooth, reliable electric operation. Safety locking system with individual keyed controller for secure platform positioning. Suspended design eliminates ground-level posts, freeing the area below for additional parking. 1, 2, and 3-wide modules. Custom stall dimensions. Ceiling-hung or building-integrated. Every SP100 suspended platform parking lift is engineered in-house with commercial-grade materials and electric lift systems. All dimensions are fully customizable to project requirements. Load per Platform | 6,000 lbs Weight of Unit | Determined by Model Length of Stall | Customizable Width of Stall | Customizable Height of Unit | Determined by Model Operation | Electric
