EFL60-6-HV-PRO

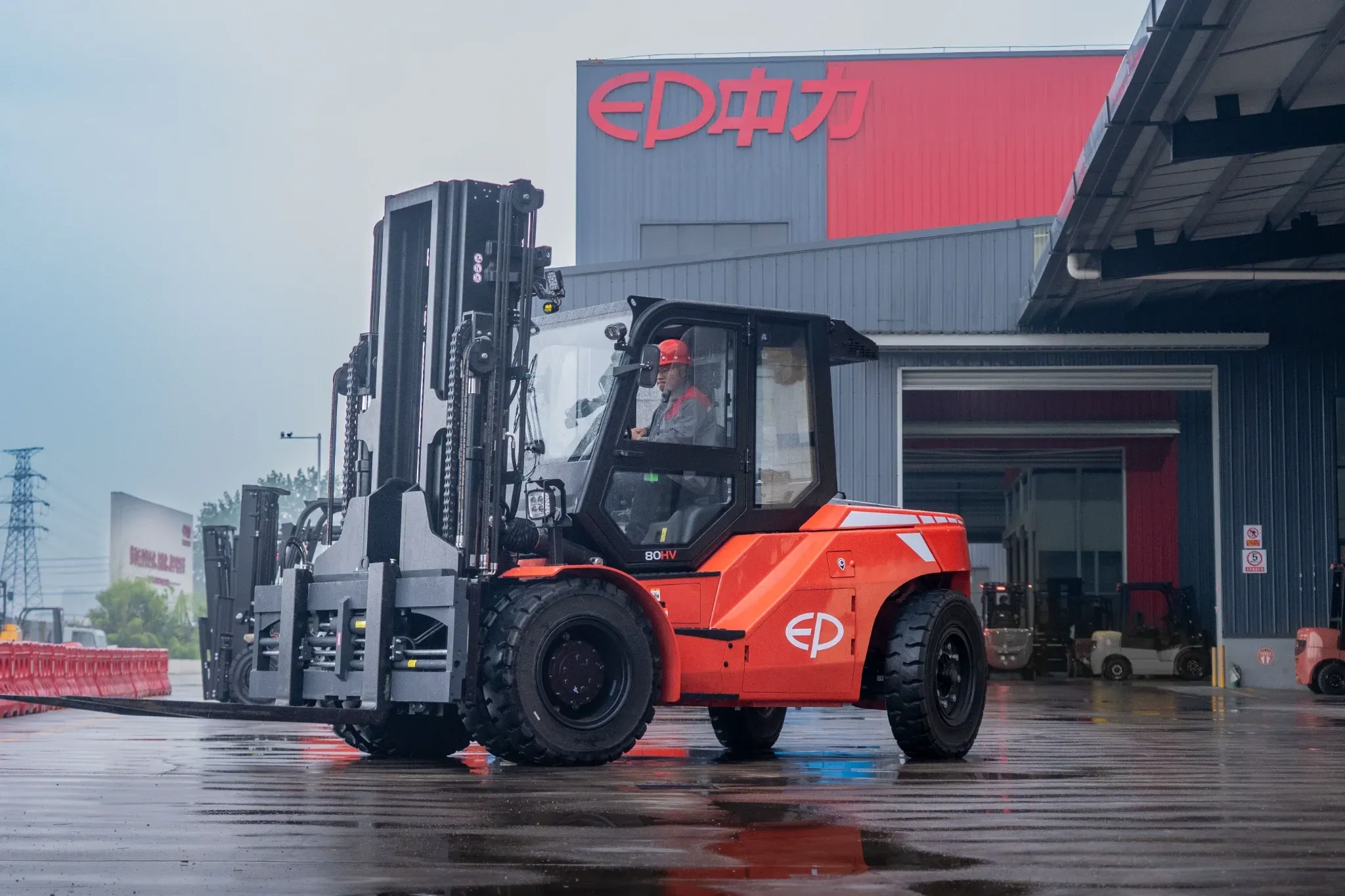

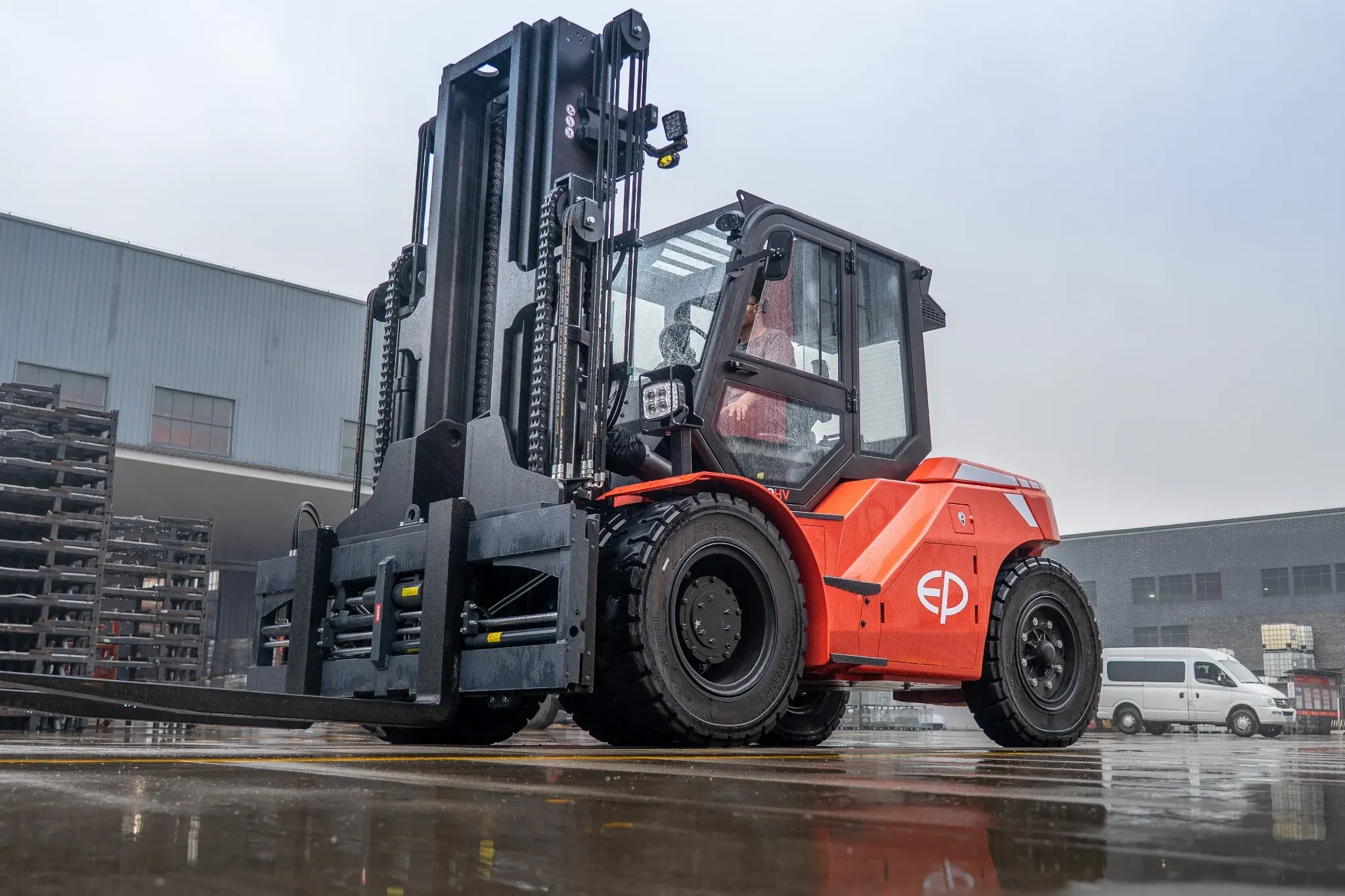

Overcoming the Most Demanding Applications The EFL50/55/60/70/75-HV PRO caters to industries dealing with extremely heavy loads, such as construction, metalworking, and more. The dual front wheels provide enhanced stability and traction when carrying massive weights. The 30% gradeability, combined with a high ground clearance, makes them adept at navigating inclines, uneven surfaces, and challenging terrain commonly found in rugged applications.
Product Gallery
Overview

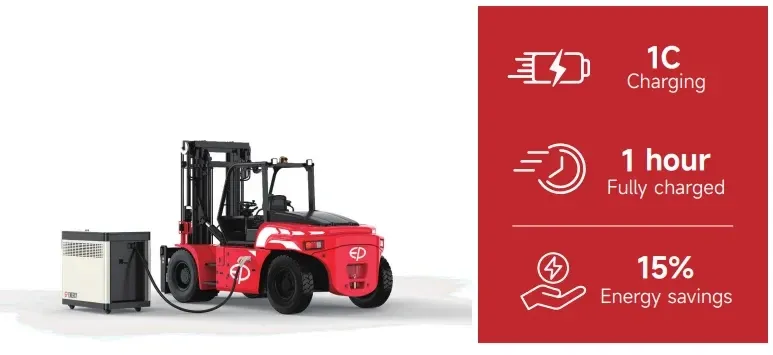

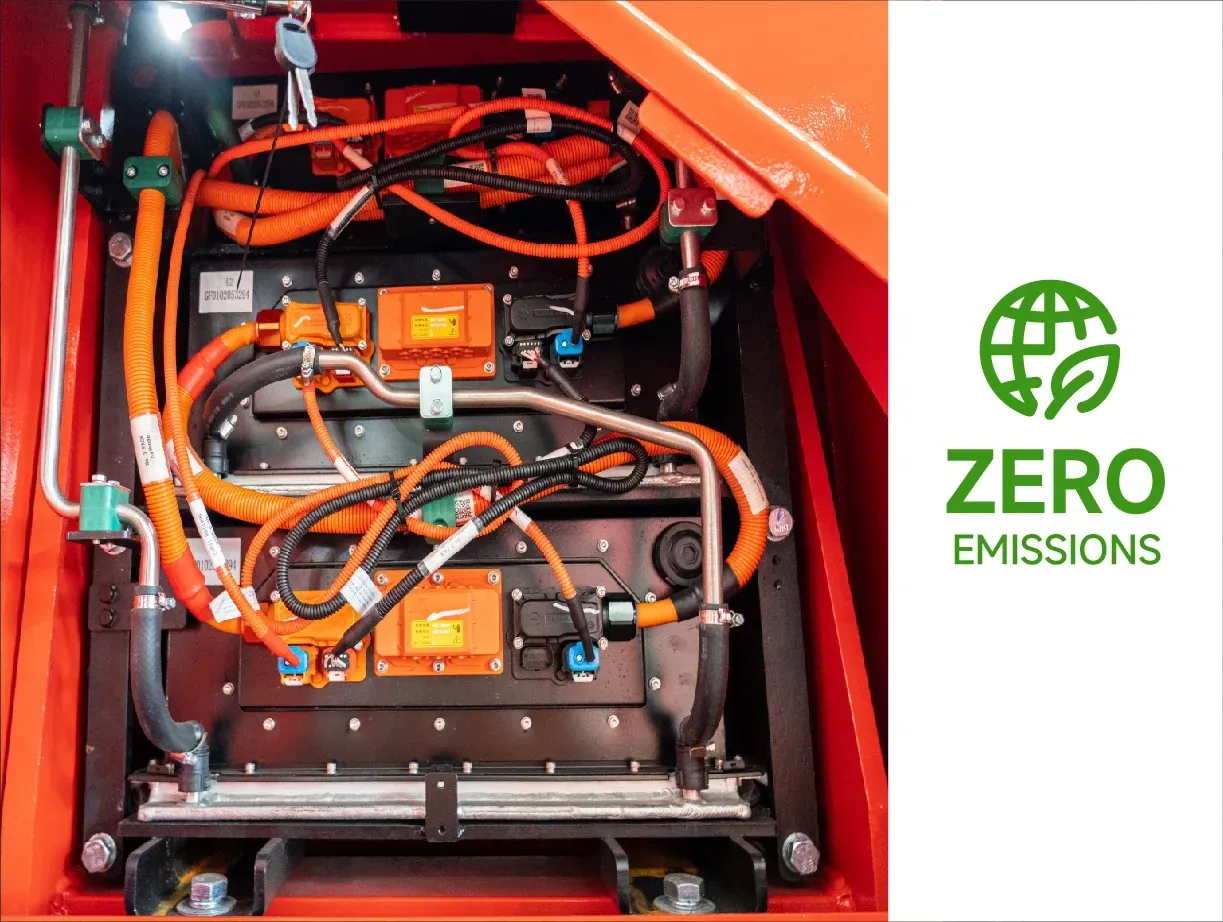

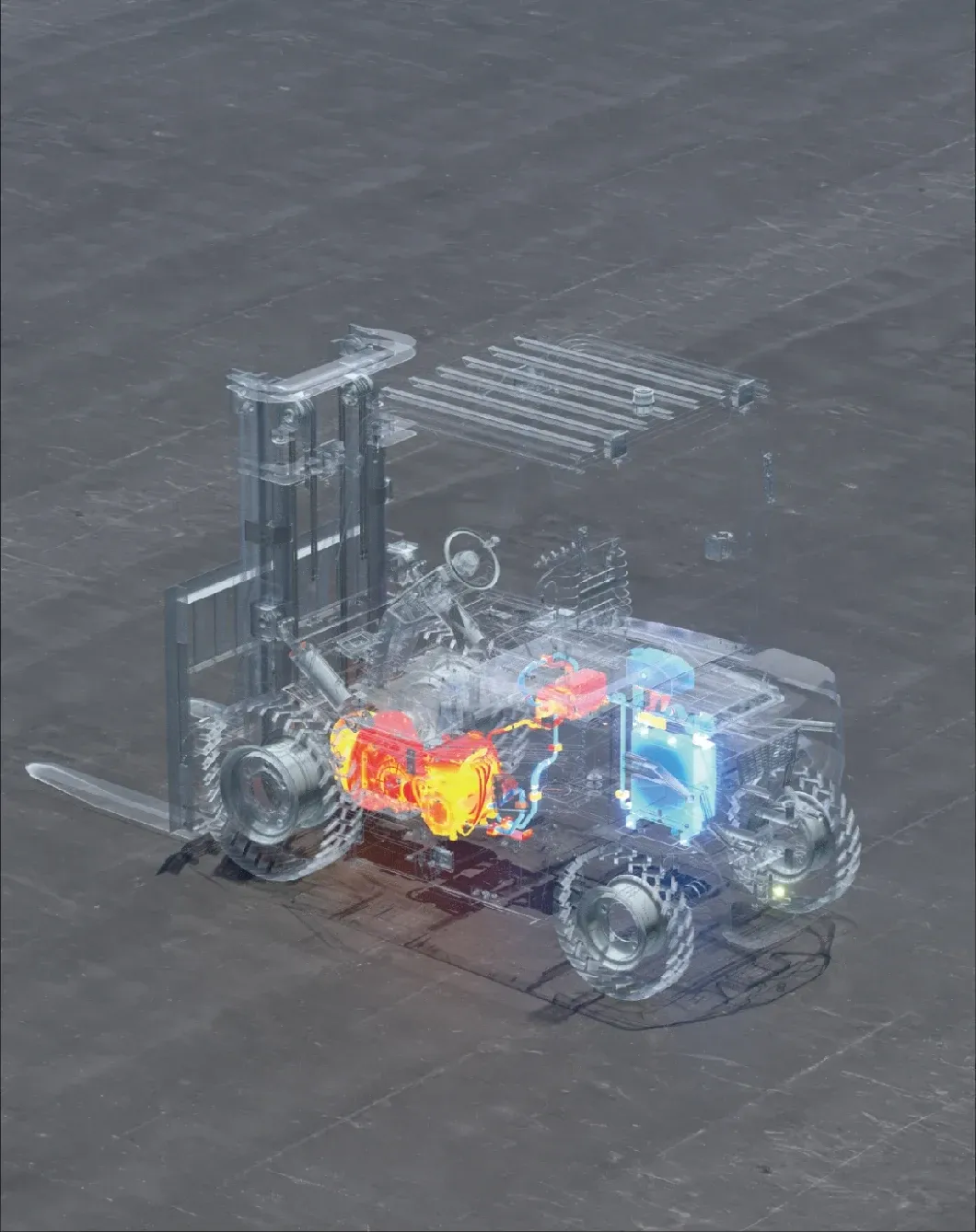

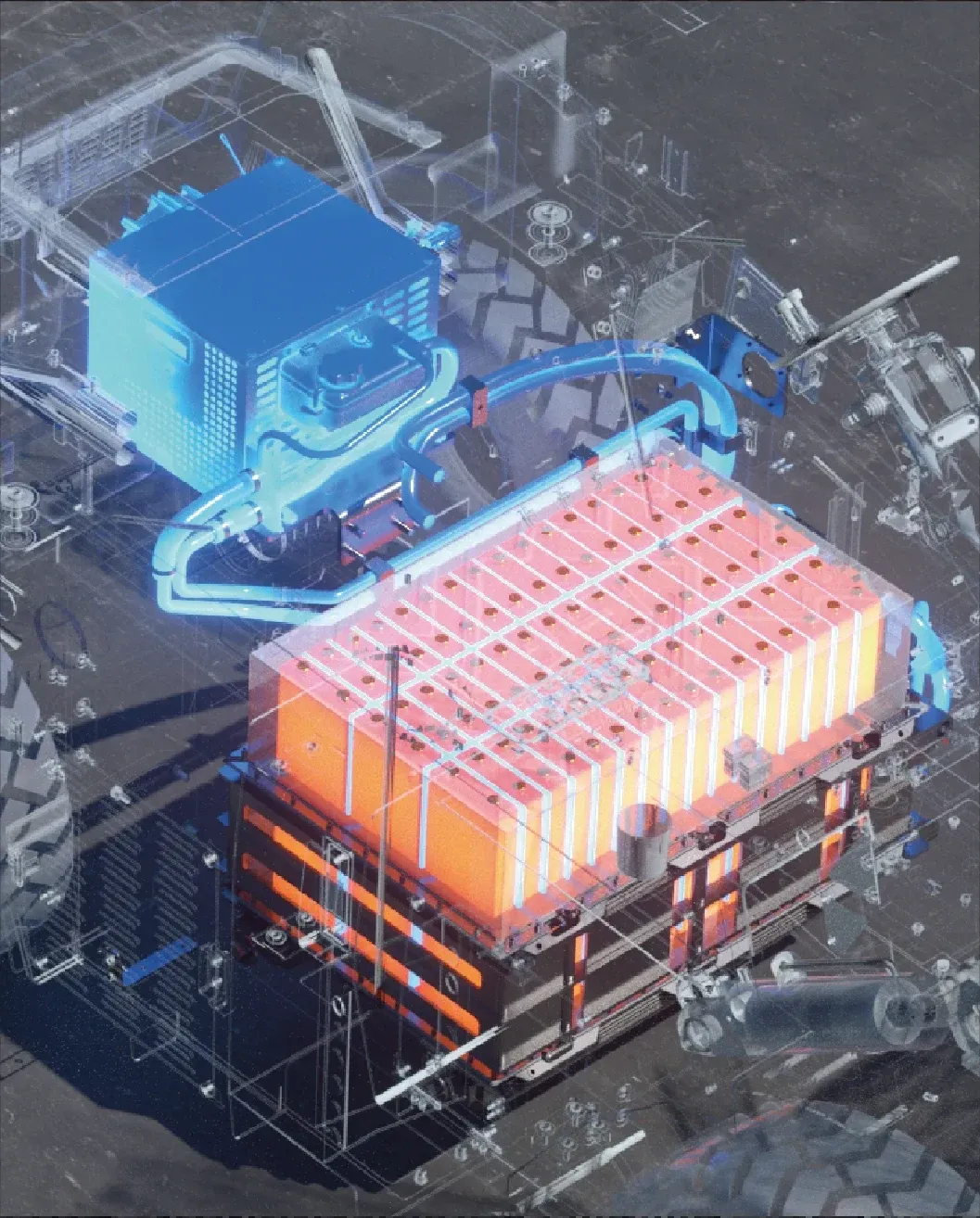

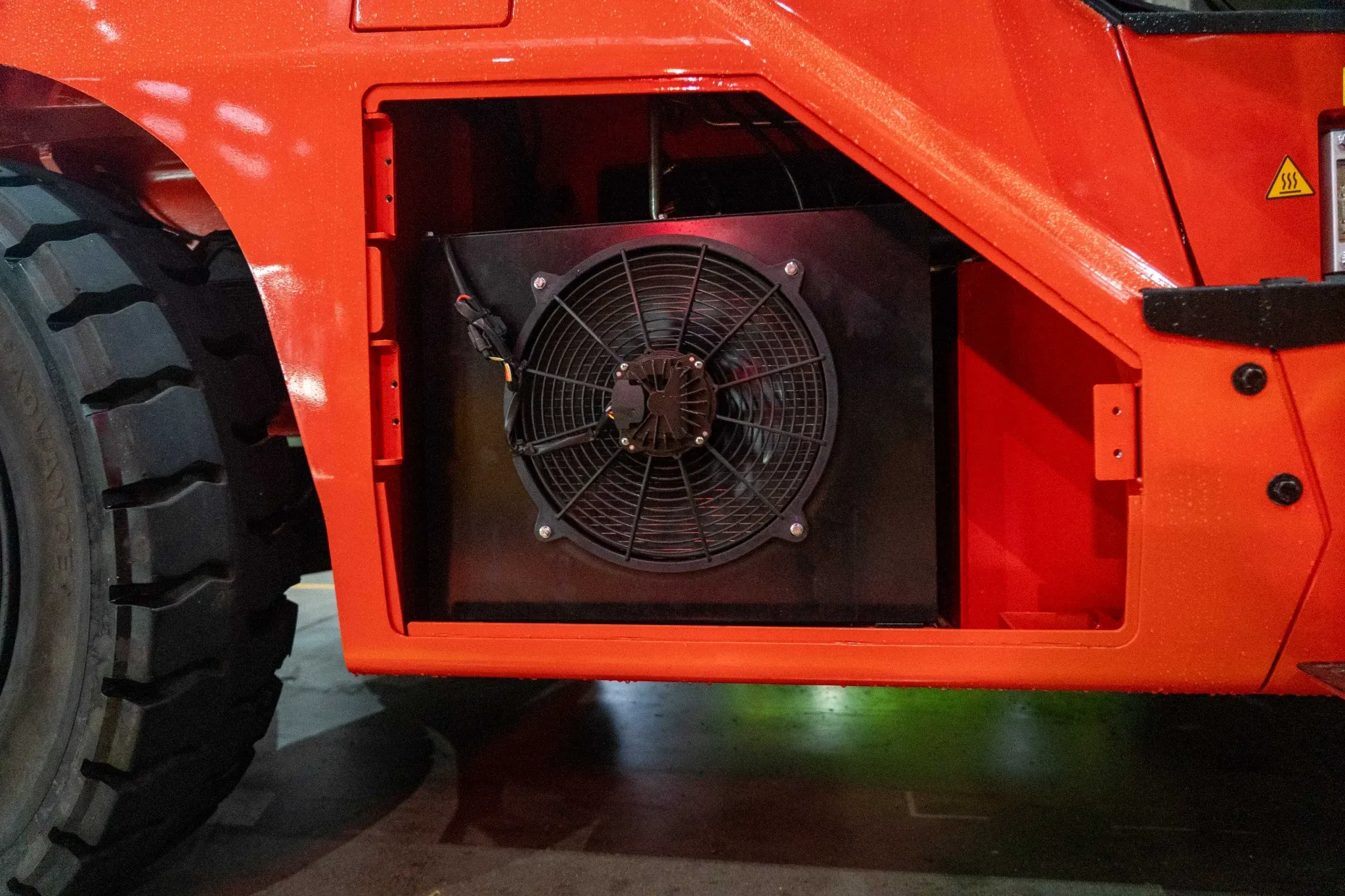

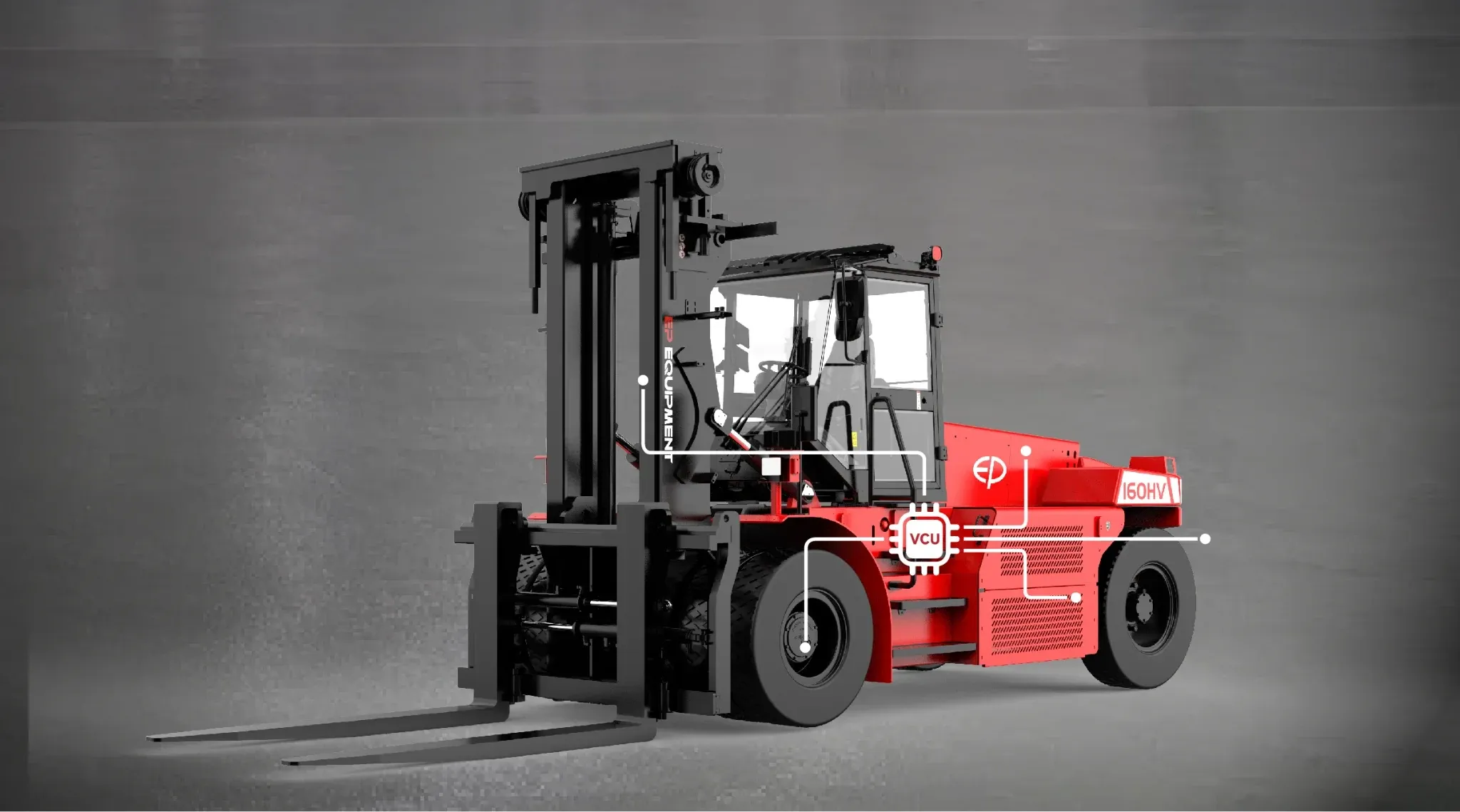

Overcoming the Most Demanding Applications The EFL50/55/60/70/75-HV PRO caters to industries dealing with extremely heavy loads, such as construction, metalworking, and more. The dual front wheels provide enhanced stability and traction when carrying massive weights. The 30% gradeability, combined with a high ground clearance, makes them adept at navigating inclines, uneven surfaces, and challenging terrain commonly found in rugged applications. The EFL50/55/60/70/75-HV PRO embodies ’s innovation in sustainable heavy lifting. Powered by a 309 V high-voltage LFP battery, it provides up to 15% energy savings compared with traditional AC systems, while maintaining strong torque and rapid acceleration. Its high-voltage PMSM drive (60 kW + 2× 27.8 kW lift motors) ensures consistent performance and smoother control across long operating cycles. A triple cooling system — dual water cooling (for battery and motor) and oil cooling (for hydraulics) — keeps all systems within optimal temperature range, ensuring reliability even under –20 °C to +40 °C conditions. Advanced VCU control enables precise speed and turning management, mast buffering, and comprehensive safety monitoring. Overcoming the Most Demanding Applications The EFL50/55/60/70/75-HV PRO caters to industries dealing with extremely heavy loads, such as construction, metalworking, and more. The dual front wheels provide enhanced stability and traction when carrying massive weights. The 30% gradeability, combined with a high ground clearance, makes them adept at navigating inclines, uneven surfaces, and challenging terrain commonly found in rugged applications. The EFL50/55/60/70/75-HV PRO embodies ’s innovation in sustainable heavy lifting. Powered by a 309 V high-voltage LFP battery, it provides up to 15% energy savings compared with traditional AC systems, while maintaining strong torque and rapid acceleration. Its high-voltage PMSM drive (60 kW + 2× 27.8 kW lift motors) ensures consistent performance and smoother control across long operating cycles. A triple cooling system — dual water cooling (for battery and motor) and oil cooling (for hydraulics) — keeps all systems within optimal temperature range, ensuring reliability even under –20 °C to +40 °C conditions. Advanced VCU control enables precise speed and turning management, mast buffering, and comprehensive safety monitoring. Operators enjoy maximum comfort and safety with an ergonomic cabin, OPS safety system, fingertip control option, LED lighting, suspension seat, and optional A/C cabins. With zero emissions, low noise, and rugged build quality, the EFL50/55/60/70/75-HV PRO is a robust and eco-efficient choice for modern heavy-duty logistics. Need any other resources? Go to our resource hub. Name | Value Manufacturer Model designation | EFL60-6-HV-PRO Drive | Electric Operator type | Seated Rated capacity | 6000 kg
