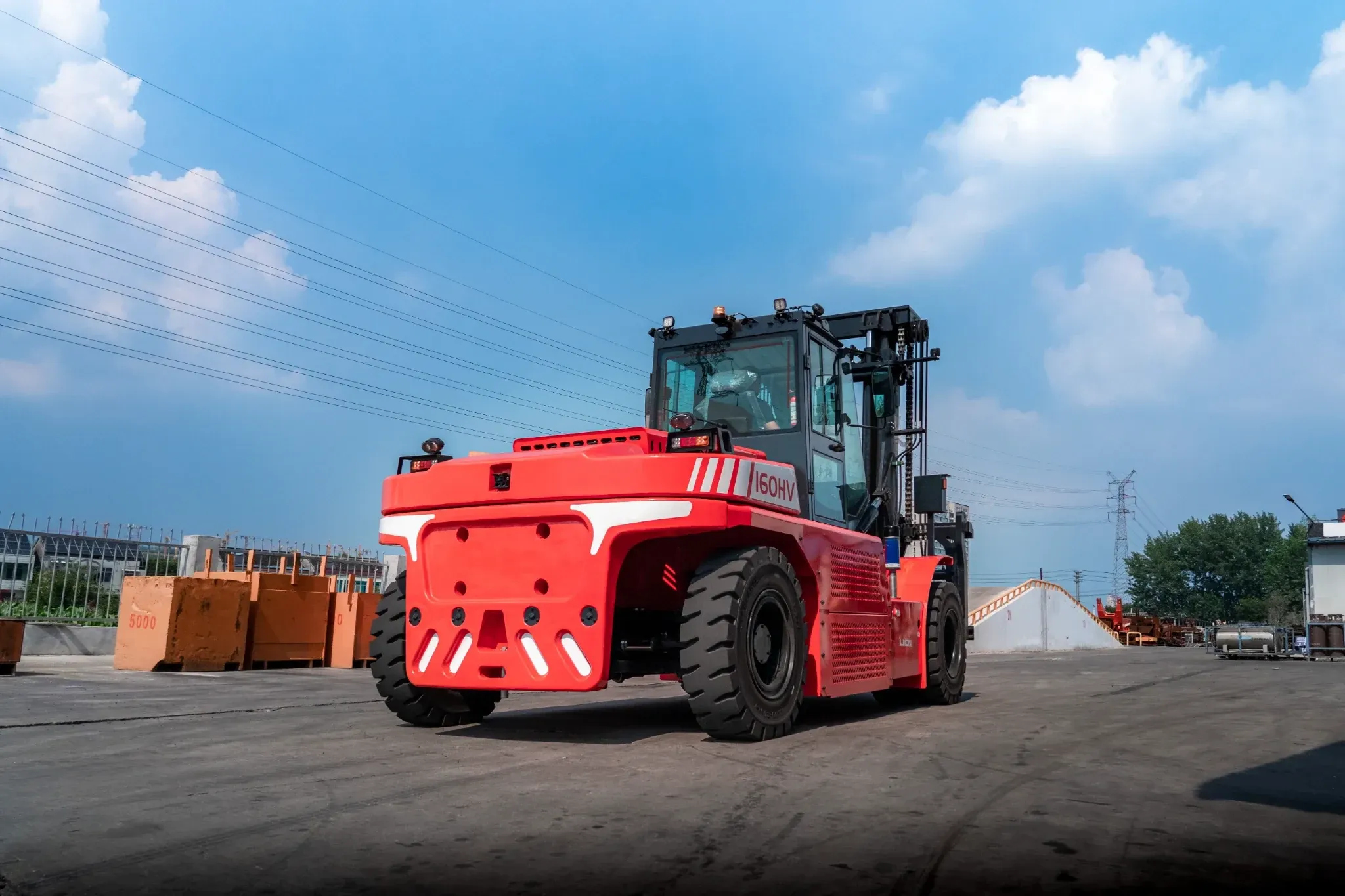

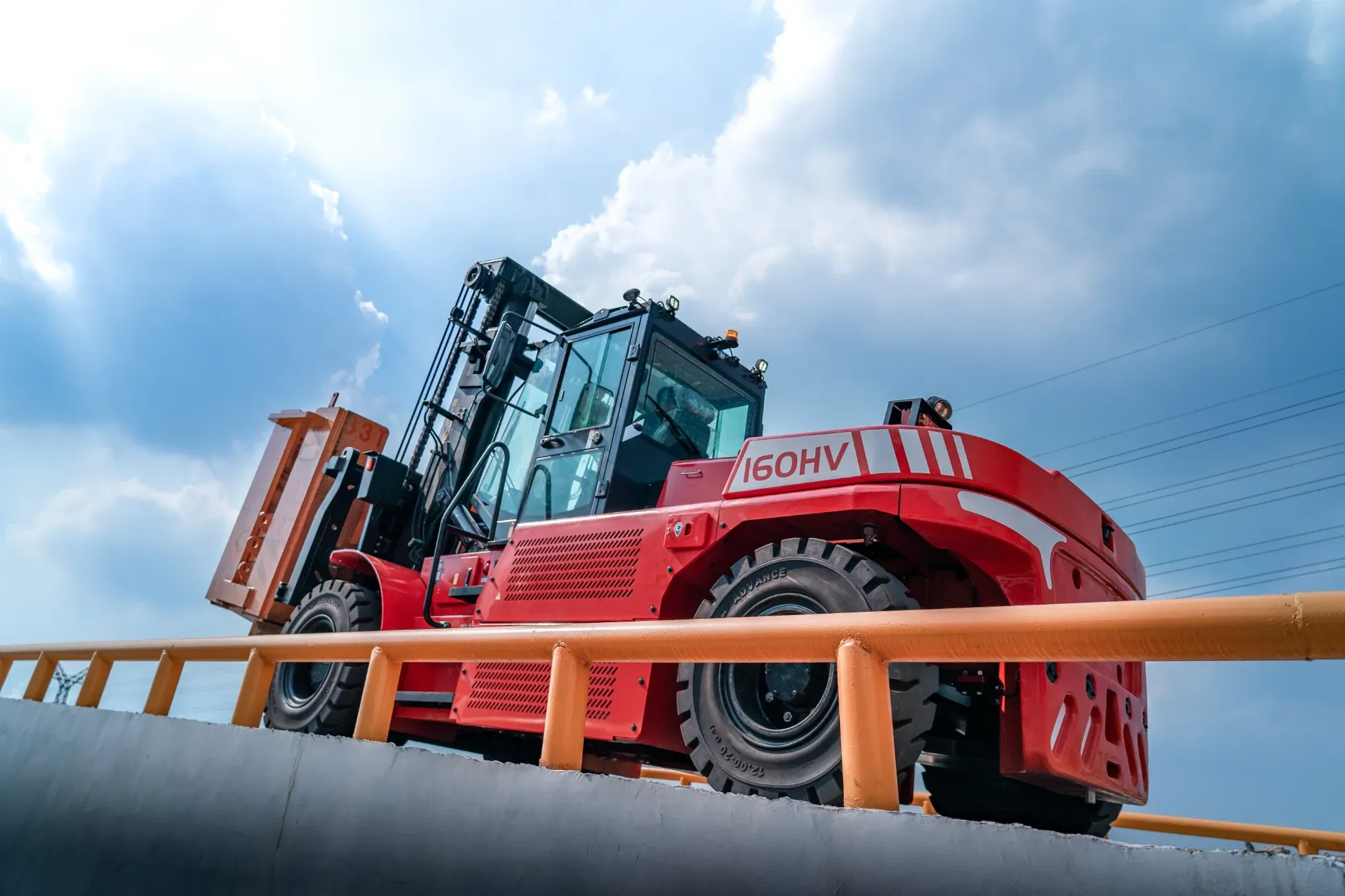

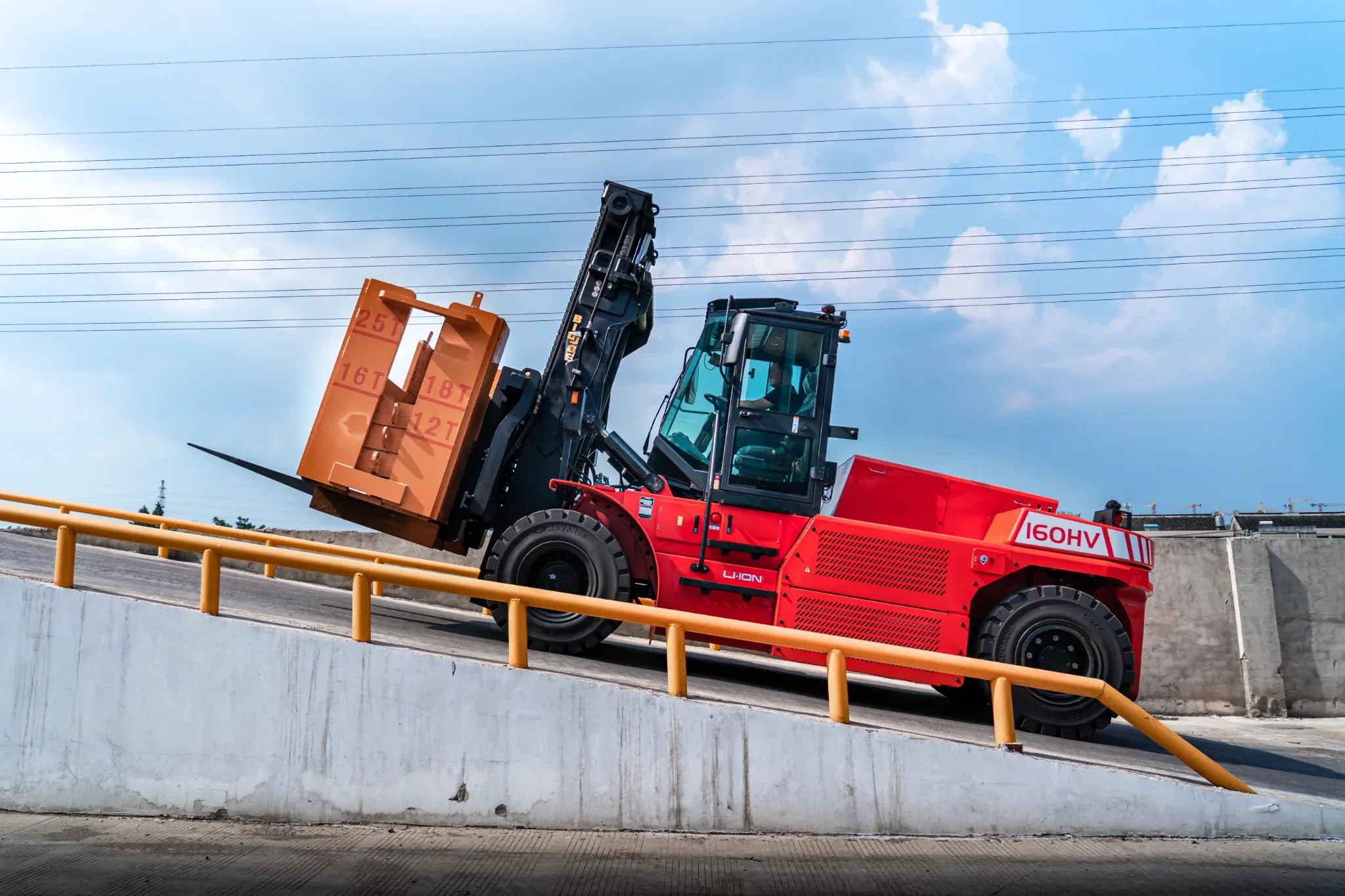

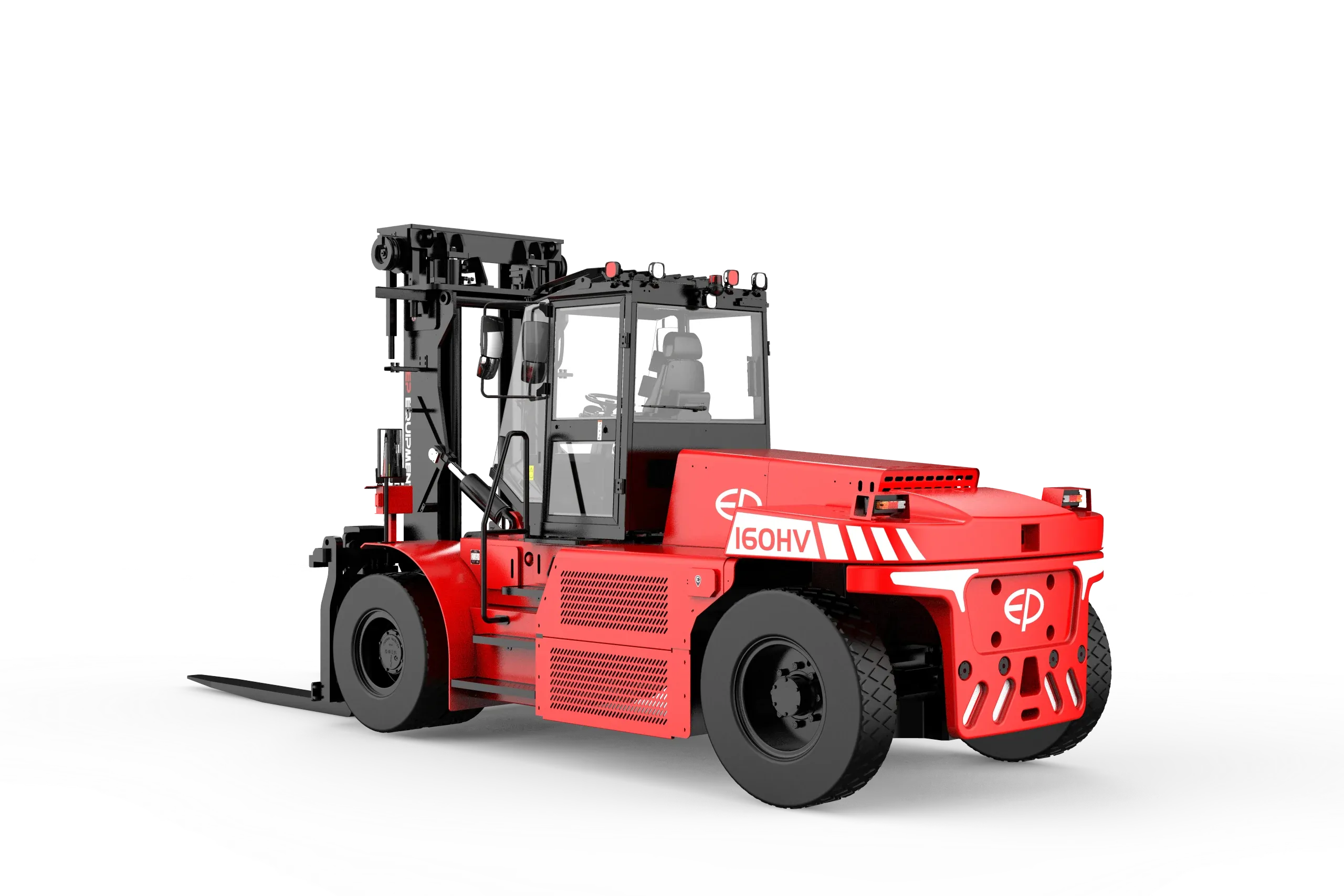

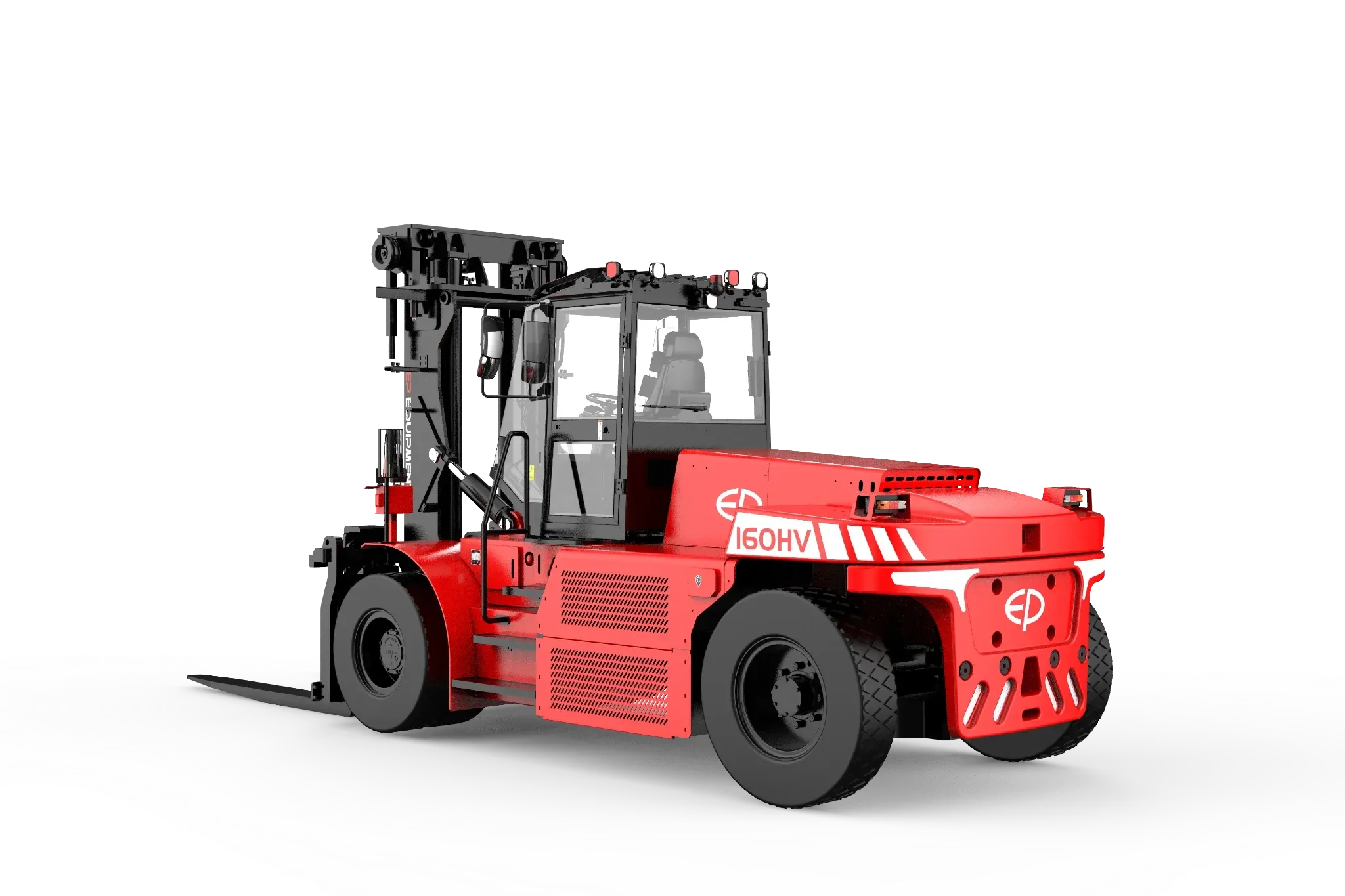

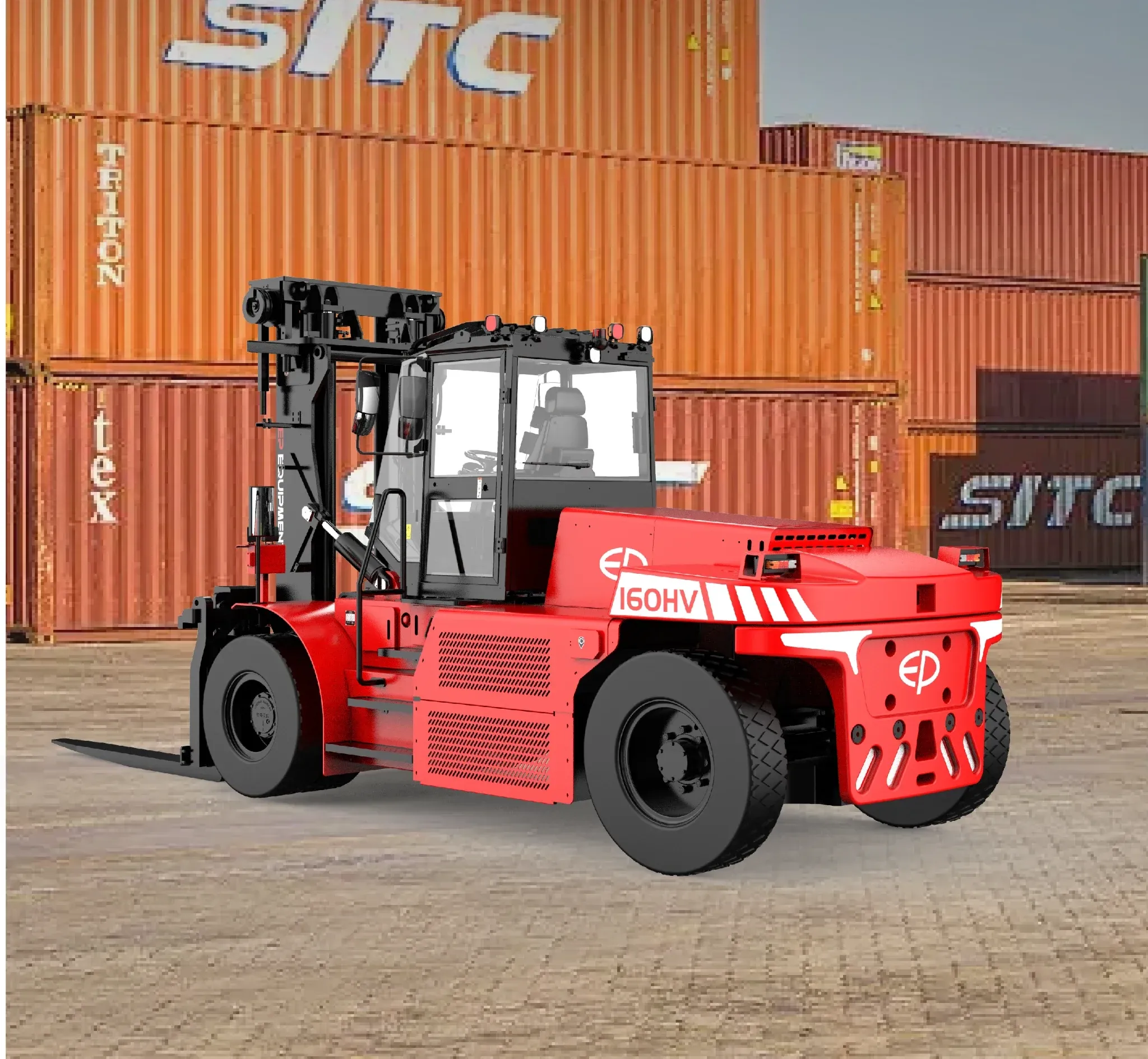

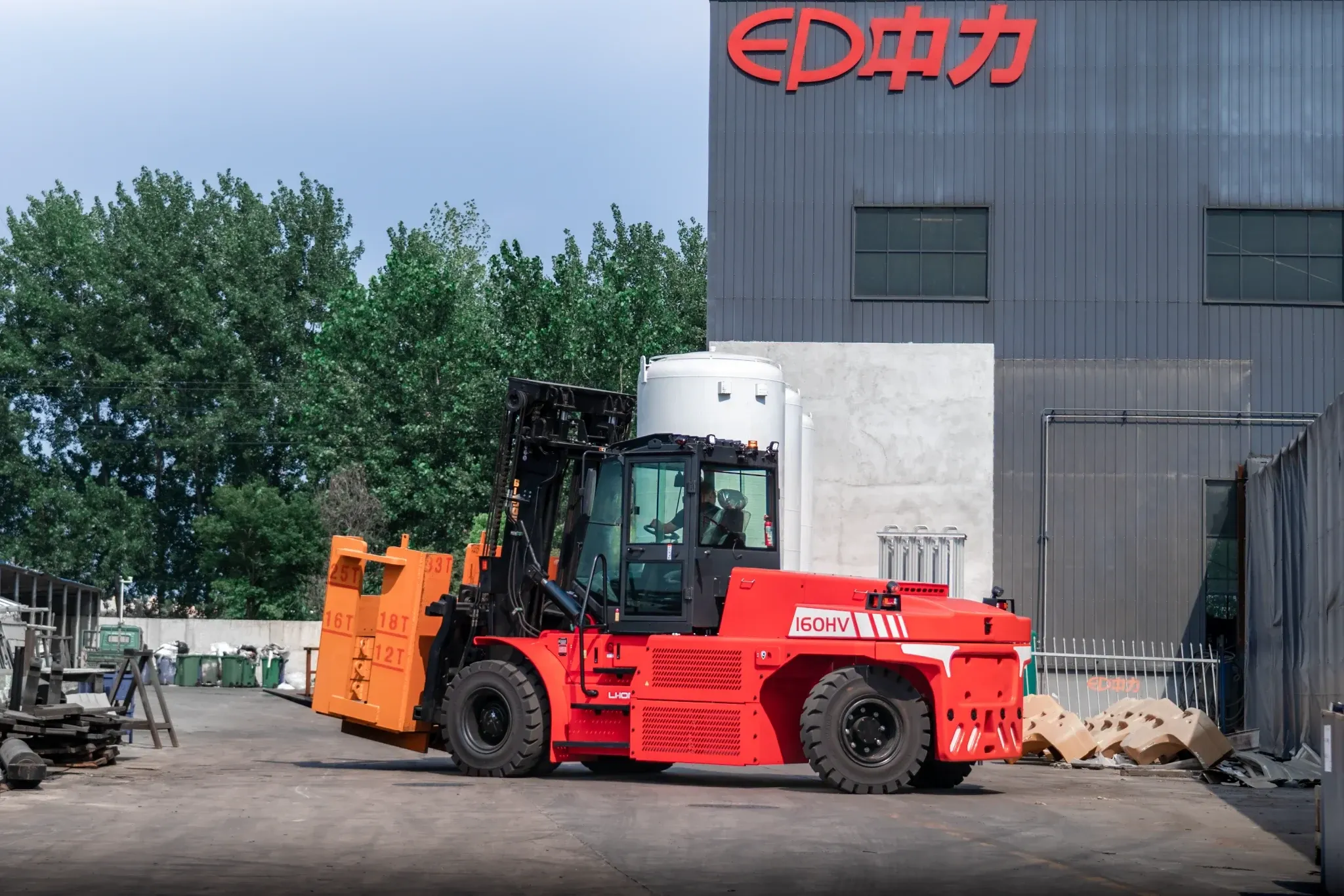

EFL1603-HV High-Voltage Li-ion Forklift

Overview

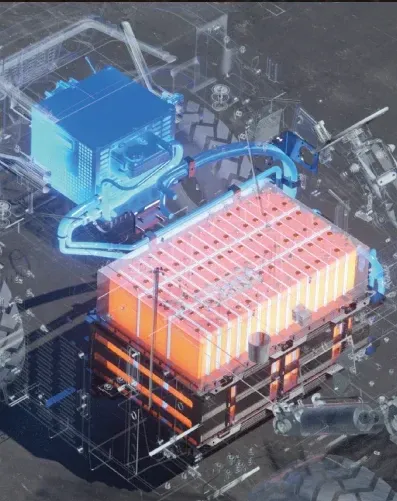

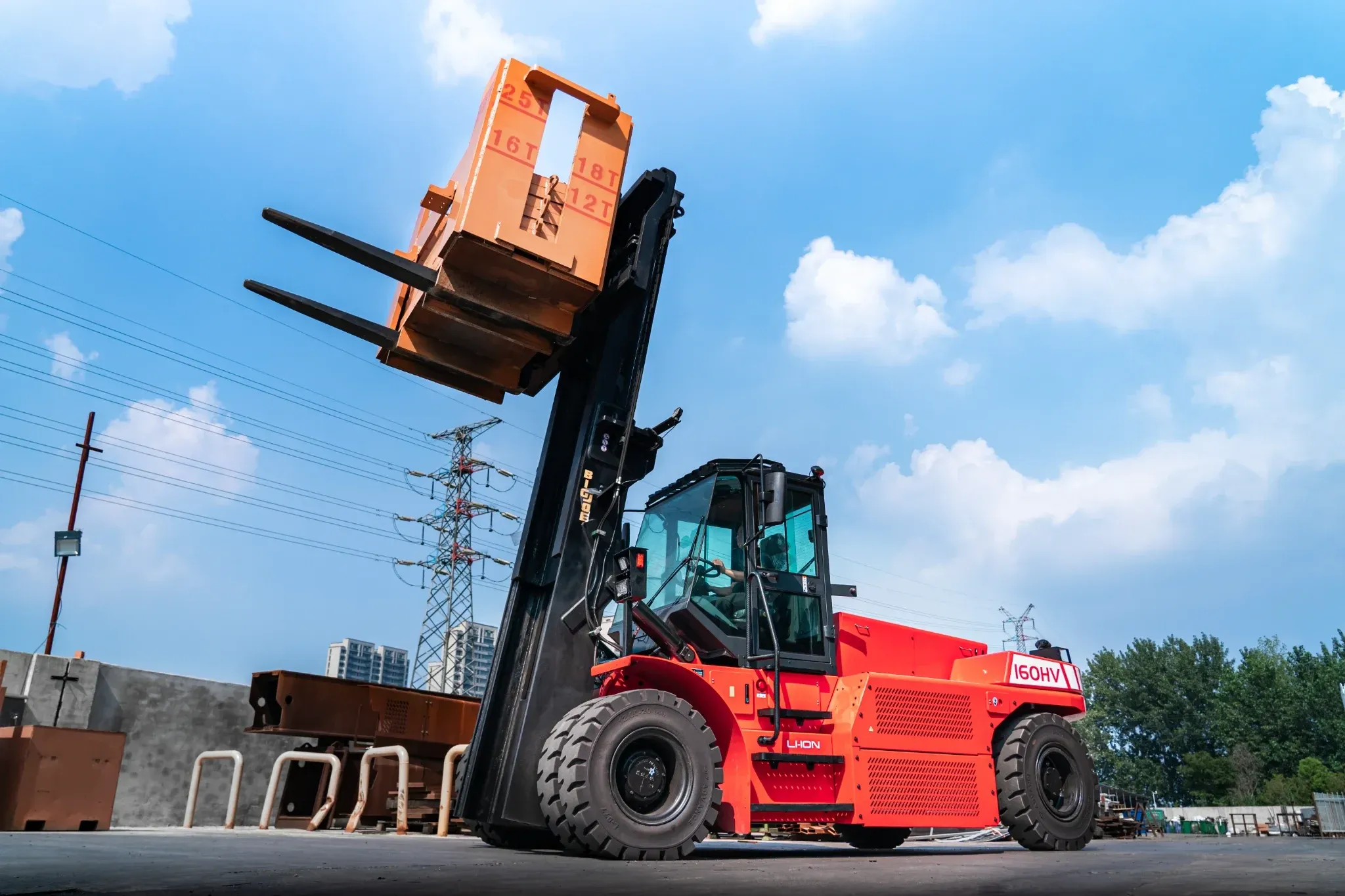

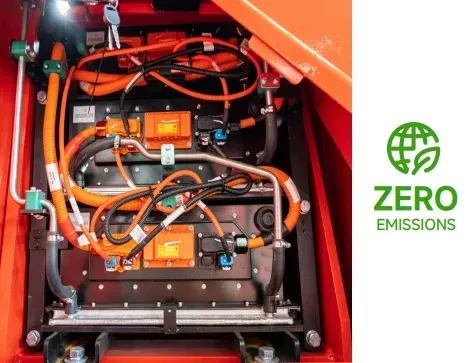

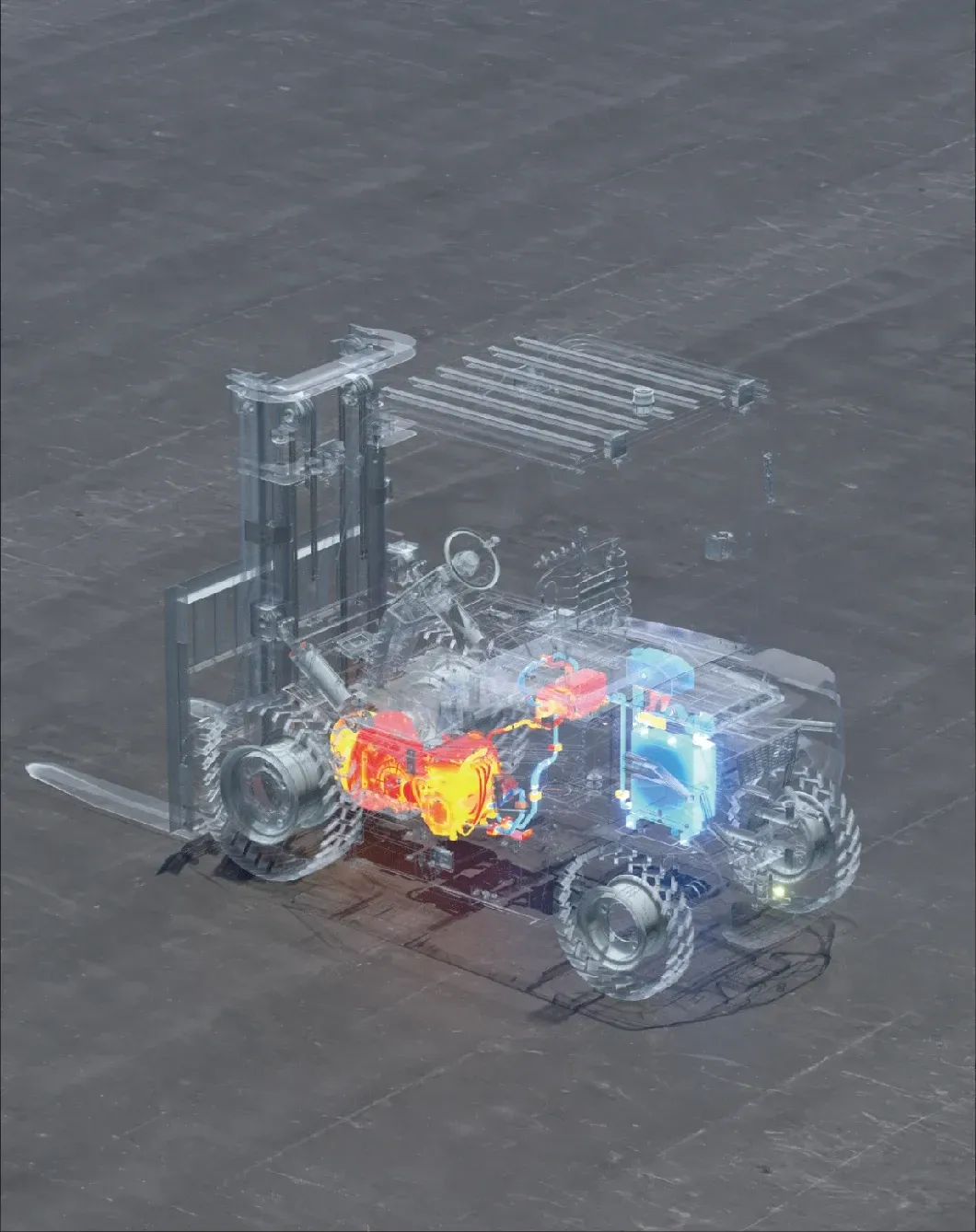

Available in 900 mm (EFL1603-HV-9) and 1200 mm (EFL1603-HV-12) load center configurations. Undeniable Power For Challenging tasks The EFL1603/1803-HV is designed for handling exceptionally heavy and bulky loads in industries such as construction, concrete, and aircraft servicing. With optimized dimensions, these trucks offer improved maneuverability and operational flexibility. The EFL1603/1803-HV redefines the standards of electric heavy-duty forklifts. Equipped with ’s 618V/228Ah LFP Li-ion battery and dual 90 kW PMSM traction motors, it offers unmatched acceleration, responsiveness, and energy efficiency. Its hydraulic lift system, rated at 60 kW, ensures quick and controlled load handling, with lifting speeds of up to 0.45 m/s. High-voltage technology minimizes current draw, reducing thermal stress and energy loss while improving overall system longevity. The integrated water- and oil-cooling systems for the motors, battery, and hydraulics maintain consistent temperature control during intense operations. Undeniable Power For Challenging tasks The EFL1603/1803-HV is designed for handling exceptionally heavy and bulky loads in industries such as construction, concrete, and aircraft servicing. With optimized dimensions, these trucks offer improved maneuverability and operational flexibility. The EFL1603/1803-HV redefines the standards of electric heavy-duty forklifts. Equipped with ’s 618V/228Ah LFP Li-ion battery and dual 90 kW PMSM traction motors, it offers unmatched acceleration, responsiveness, and energy efficiency. Its hydraulic lift system, rated at 60 kW, ensures quick and controlled load handling, with lifting speeds of up to 0.45 m/s. High-voltage technology minimizes current draw, reducing thermal stress and energy loss while improving overall system longevity. The integrated water- and oil-cooling systems for the motors, battery, and hydraulics maintain consistent temperature control during intense operations. For operator comfort, the EFL1603/1803-HV features an ergonomic cabin with suspension seat, OPS system, fingertip hydraulic controls, and full visibility. Optional all-weather cabins with air conditioning, LED lighting, and reversing cameras enhance safety and usability. Combining zero-emission technology with diesel-like strength, this series offers a powerful and sustainable solution for modern industrial fleets. Need any other resources? Go to our resource hub. Name | Value Manufacturer Model designation | EFL1603-HV-9 Drive | Electric Operator type | Seated Rated capacity | 16000 kg Undeniable Power For Challenging tasks The EFL1603/1803-HV is designed for handling exceptionally heavy and bulky loads in industries such as construction, concrete, and aircraft servicing. With optimized dimensions, these trucks offer improved maneuverability and operational flexibility. The EFL1603/1803-HV redefines the standards of electric heavy-duty forklifts. Equipped with ’s 618V/228Ah LFP Li-ion battery and dual 90 kW PMSM traction motors, it offers unmatched acceleration, responsiveness, and energy efficiency. Its hydraulic lift system, rated at 60 kW, ensures quick and controlled load handling, with lifting speeds of up to 0.45 m/s. High-voltage technology minimizes current draw, reducing thermal stress and energy loss while improving overall system longevity. The integrated water- and oil-cooling systems for the motors, battery, and hydraulics maintain consistent temperature control during intense operations. Undeniable Power For Challenging tasks The EFL1603/1803-HV is designed for handling exceptionally heavy and bulky loads in industries such as construction, concrete, and aircraft servicing. With optimized dimensions, these trucks offer improved maneuverability and operational flexibility. The EFL1603/1803-HV redefines the standards of electric heavy-duty forklifts. Equipped with ’s 618V/228Ah LFP Li-ion battery and dual 90 kW PMSM traction motors, it offers unmatched acceleration, responsiveness, and energy efficiency. Its hydraulic lift system, rated at 60 kW, ensures quick and controlled load handling, with lifting speeds of up to 0.45 m/s. High-voltage technology minimizes current draw, reducing thermal stress and energy loss while improving overall system longevity. The integrated water- and oil-cooling systems for the motors, battery, and hydraulics maintain consistent temperature control during intense operations. For operator comfort, the EFL1603/1803-HV features an ergonomic cabin with suspension seat, OPS system, fingertip hydraulic controls, and full visibility. Optional all-weather cabins with air conditioning, LED lighting, and reversing cameras enhance safety and usability. Combining zero-emission technology with diesel-like strength, this series offers a powerful and sustainable solution for modern industrial fleets. Need any other resources? Go to our resource hub. Name | Value Manufacturer Model designation | EFL1603-HV-12 Drive | Electric Operator type | Seated Rated capacity | 16000 kg
